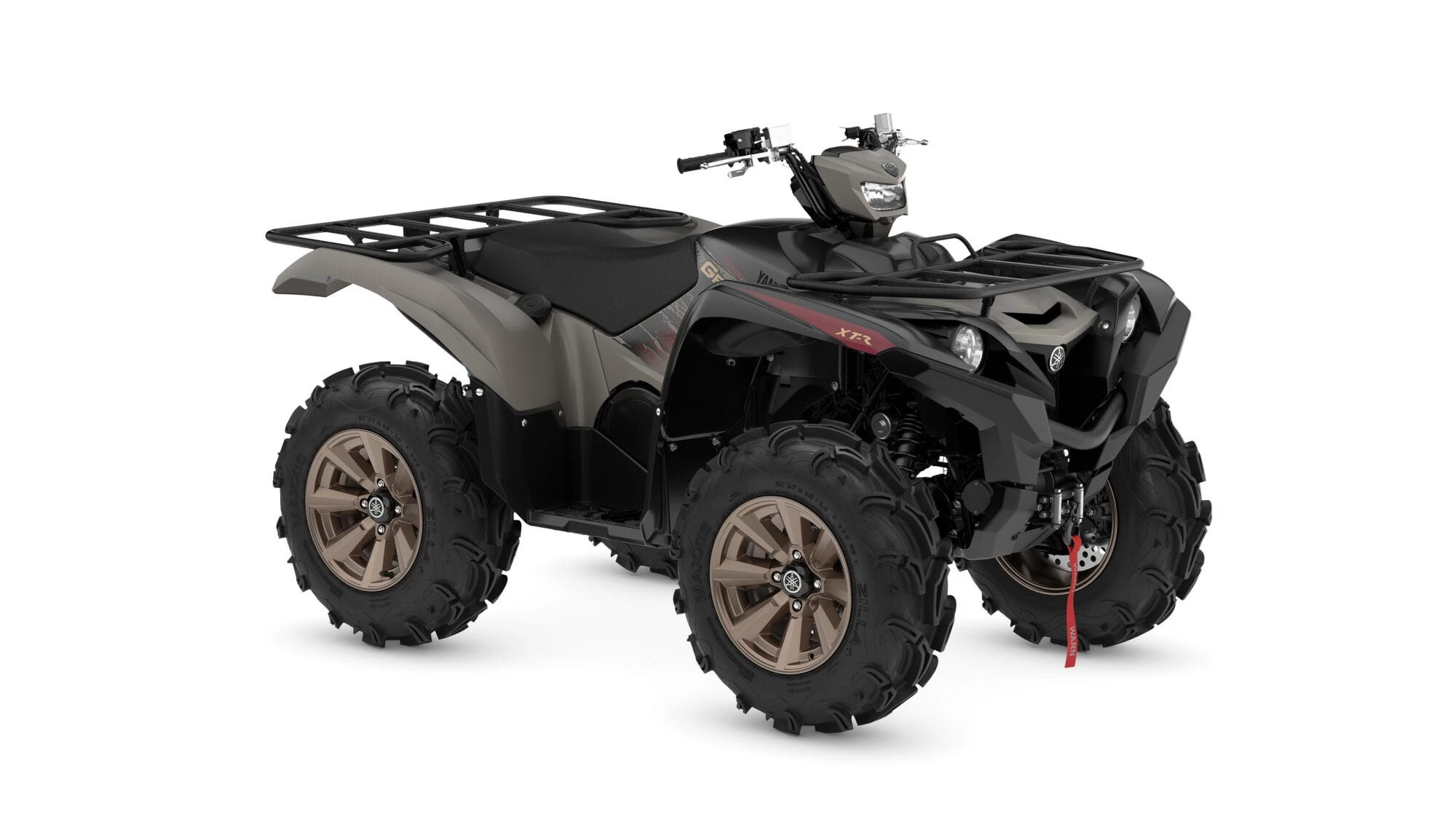

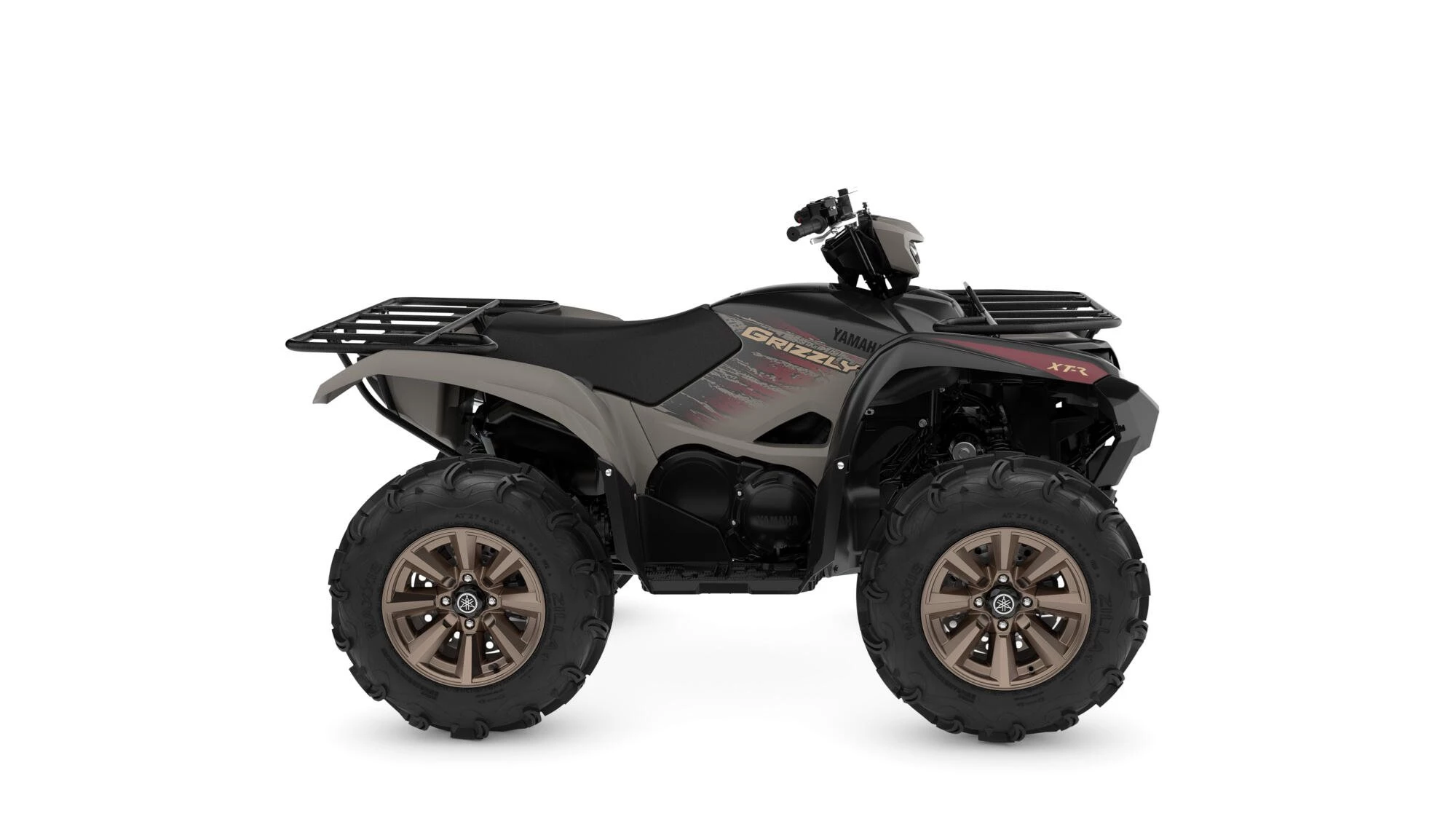

Yamaha Grizzly 700 EPS XT-R ATV

A force of nature.

Yamaha’s industry-leading Ultramatic® transmission automatically selects the optimal gear for all types of terrain, while natural braking on all wheels offers confidence when descending – and the On-Command® Drive System lets you switch seamlessly between 2WD, 4WD and differential lock with just the touch of a button.

The electronic power steering provides natural feedback for greater comfort and control – and with its 4-wheel disc braking system and adjustable independent suspension, the Grizzly 700 EPS Alu is ready to tackle even the most demanding terrain – it’s a true force of nature.

At a glance

• High-performance all-terrain vehicle (ATV)
• Driver-selectable all-wheel drive system
• Excellent driving characteristics, whether on the trail or off-road
• Long-travel, off-road and comfortable suspension
• 4 powerful and reliable hydraulic disc brakes
• Very balanced driving characteristics
• Less fatigue and more precise operation thanks to EPS
• Ergonomically adapted to the driver
• High capacity for stowing and pulling loads
• Water transfer printing surface coating for camo print design
• Incl. road approval T3b

• Displacement 708 cc
• Bore x stroke 103.0 mm x 85.0 mm
• Compression ratio 10.1:1
• Wet sump lubrication
• Mixture preparation Electronic fuel injection
• Ignition transistor
• Electric starting system
• Transmission Yamaha Ultramatic®, CVT, centrifugal clutch
• Drive On-Command® 2WD/4WD/Differential Lock
• Secondary drive shaft

chassis

• Front suspension
  Double wishbone independent suspension, 193 mm travel
• Rear suspension
  Double wishbone independent suspension, 232 mm travel
• Front brake
  2 ventilated hydraulically operated discs
• Rear brake
  2 ventilated hydraulically operated discs
• Front tires
  Maxxix MU19 AT26x8-12, steel rims, (SE and Alpine White with alloy rims)
• Rear tires
  Maxxix MU19, AT26x10-12, steel rims, (SE and Alpine White with alloy rims)

Dimensions

• Total length 2,070 mm
• Total width 1,230 mm
• Total height 1,253 mm
• Seat height 860 mm
• Wheelbase 1,253 mm
• Ground clearance 288 mm
• Smallest turning circle 3.5 m
• Tank capacity 18.0 liters
• Oil tank capacity 2.6 liters

Load limits

• Front carrier 50 kg
• Rear carrier 90 kg

Additional features

• Steering system
  Axle steering with electric servo assistance (not applicable to standard version)
