Yamaha’s industry-leading Ultramatic® transmission automatically selects the optimum gearing for all types of terrain, while the natural all-wheel engine braking gives huge confidence in downhill descents – and the On-Command® drive system allows you to switch seamlessly between 2WD, 4WD and Diff-lock at the push of a button.

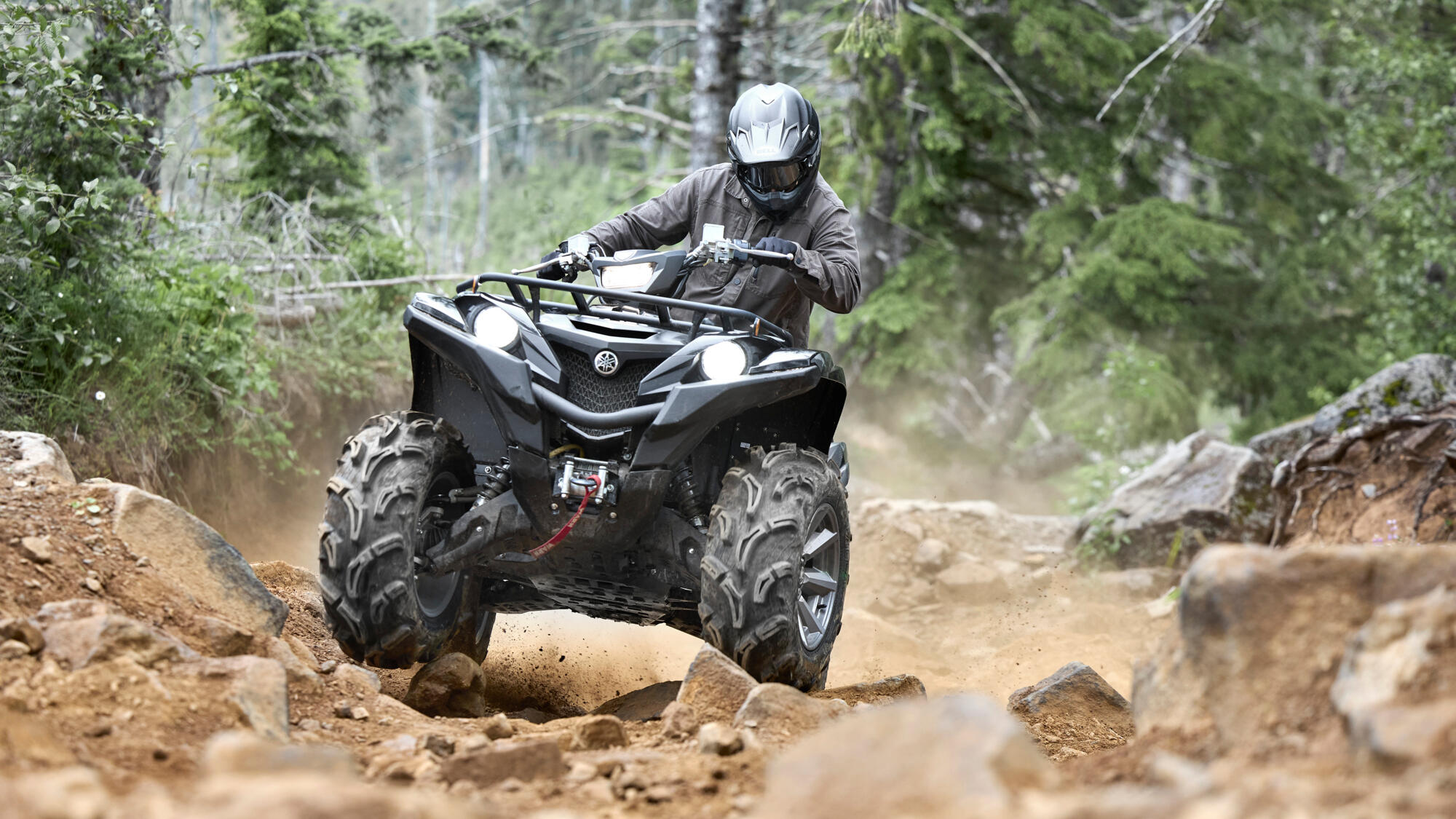

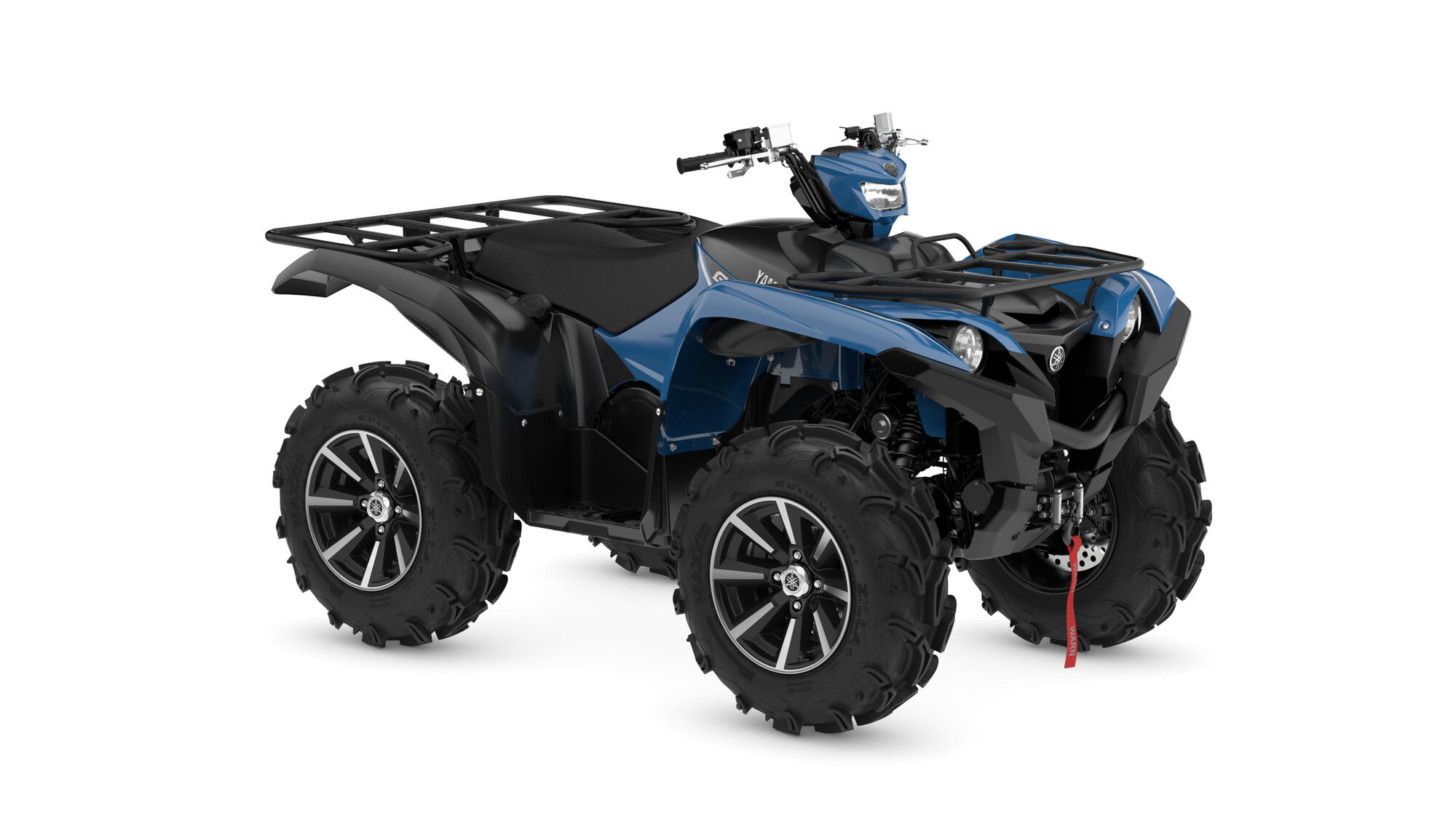

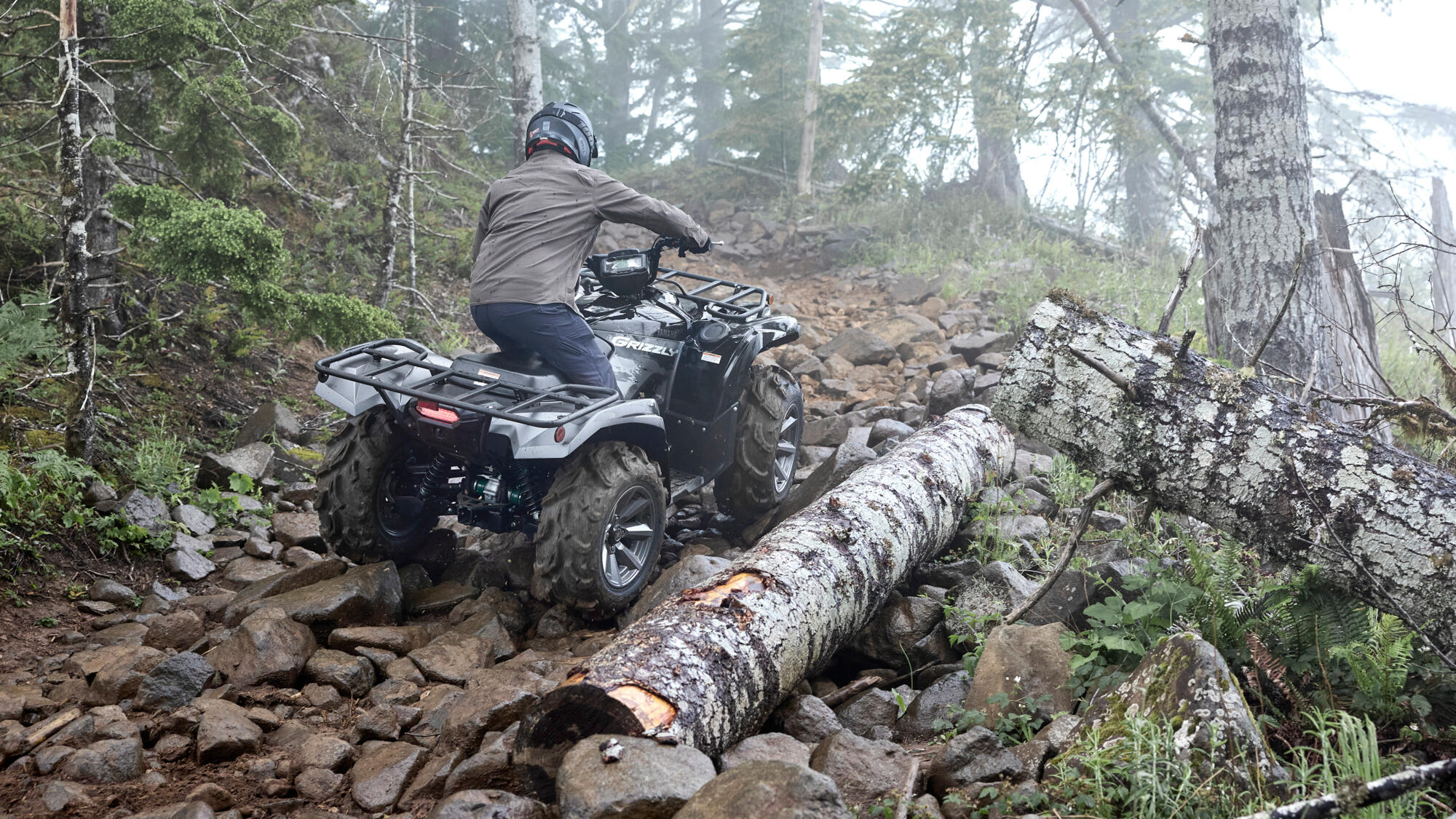

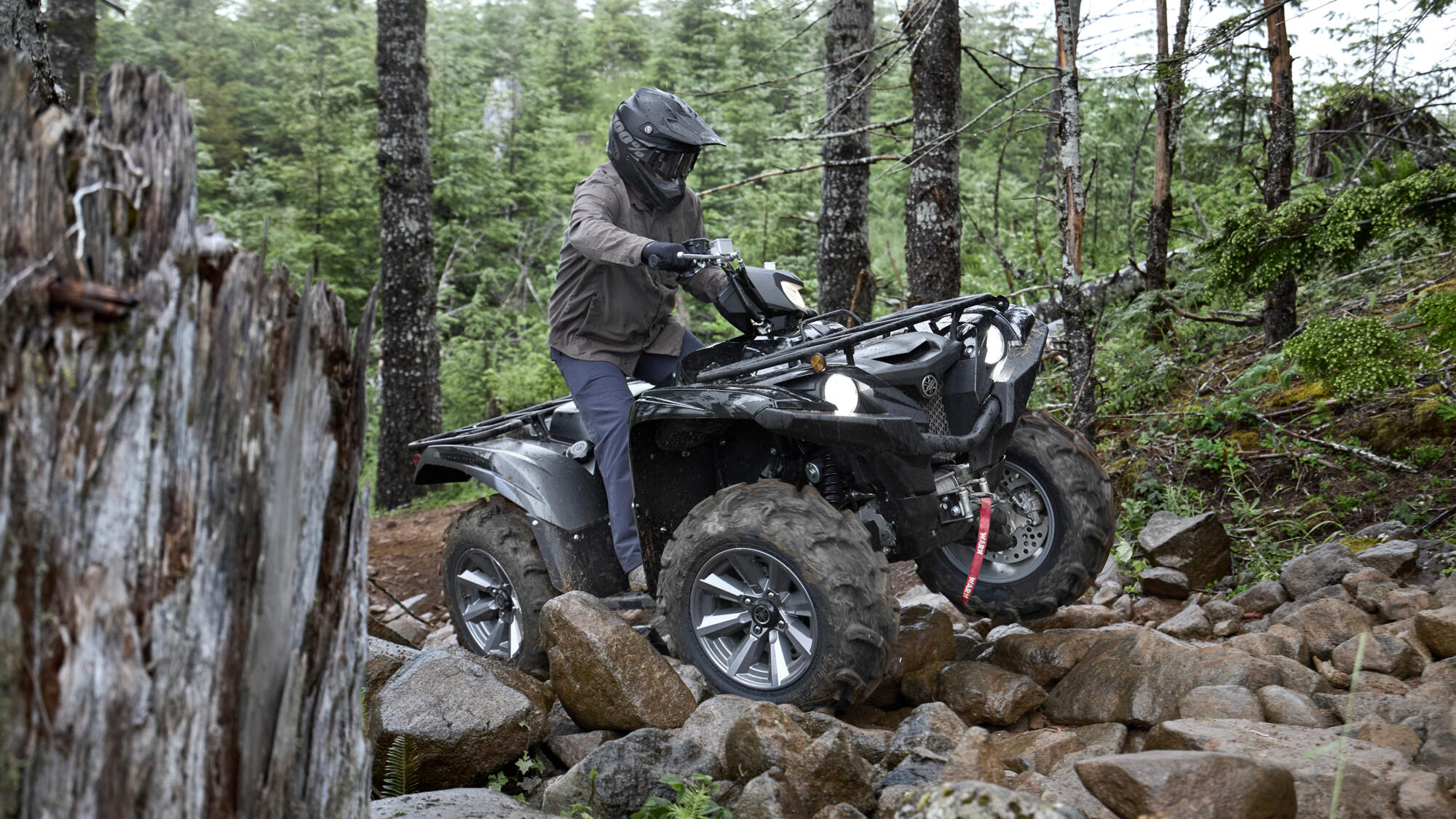

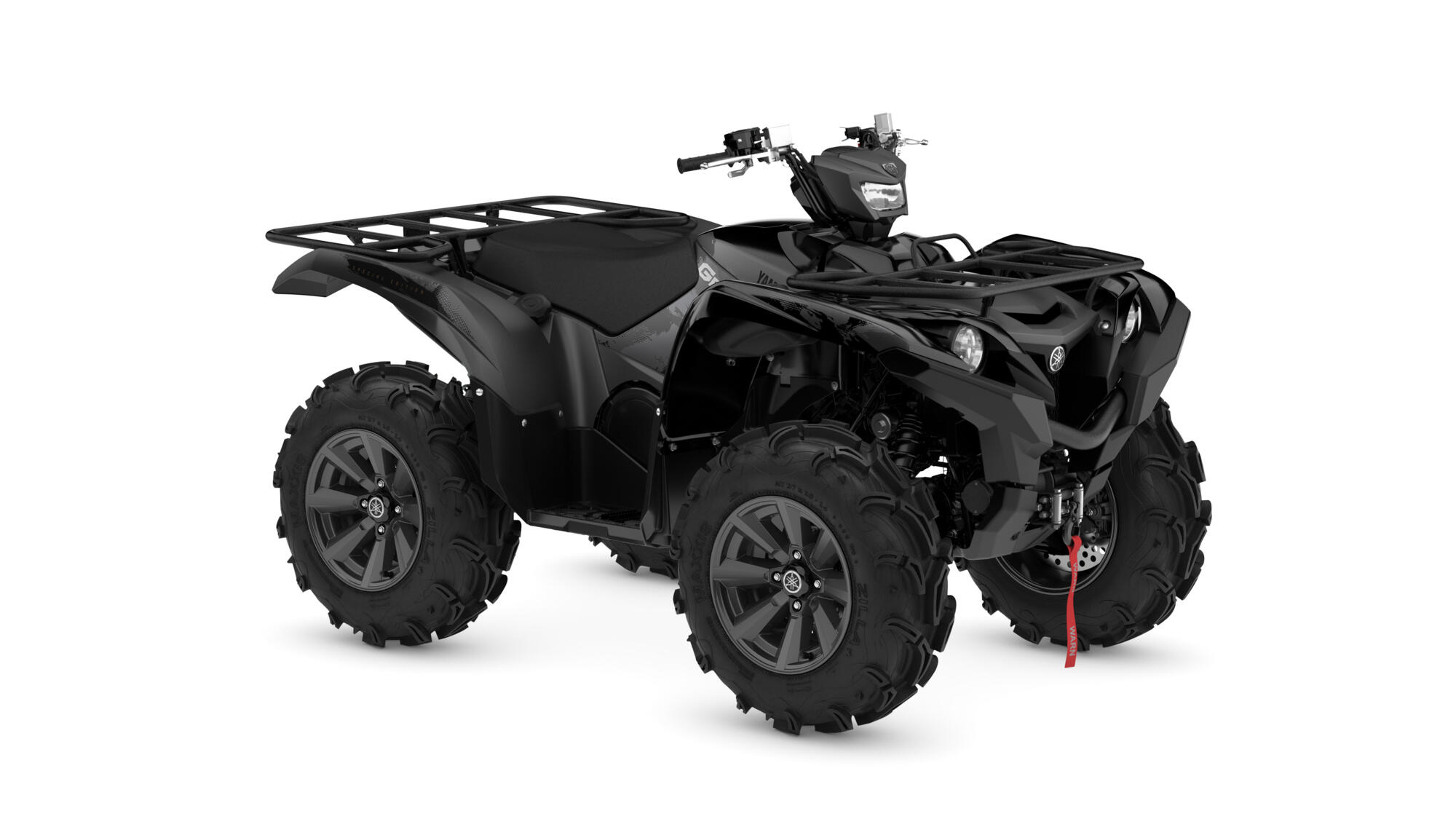

Electronic Power Steering gives a natural feedback for enhanced comfort and control – and with its 4-wheel disc brake system and adjustable independent suspension, the super-tough Grizzly 700 EPS XT-R (Special Edition) is ready to take on the most challenging terrain. Discover this true force of nature.
|
Engine type |
Single cylinder, Liquid-cooled, 4-stroke, SOHC, 4-valves |
|
Displacement |
686 cc |
|
Bore x stroke |
102.0 mm x 84.0 mm |
|
Compression ratio |
10.0 : 1 |
|
Lubrication system |
Wet sump |
|
Fuel system |
Electronic Fuel Injection |
|
Ignition system |
TCI |
|
Starter system |
Electric |
|
Transmission system |
L/H/N/R/P, Ultramatic® V-belt with front- and rear wheel engine braking |
|
Drive system |
On-Command® 2WD/4WD/diff-lock |
|
Final transmission |
Shaft |
|
Front suspension system |
Independent double wishbone, 193 mm wheel travel, 5 position preload adjustment |
|
Rear suspension system |
Independent double wishbone, 232 mm wheel travel, 5 position preload adjustment |
|
Front brake |
Dual ventilated hydraulic disc |
|
Rear brake |
left hand/right foot operation, Ventilated hydraulic disc |
|
Front tyres |
Maxxis 27″ Zilla tires 27x 10-14, aluminium wheels |
|
Rear tyres |
Maxxis 27″ Zilla tires 27x 10-14, aluminium wheels |
|
Overall length |
2,070 mm |
|
Overall width |
1,230 mm |
|
Overall height |
1,253 mm |
|
Seat height |
930 mm |
|
Wheelbase |
1,253 mm |
|
Minimum ground clearance |
300 mm |
|
Min. turning radius |
3.5 m |
|
Fuel tank capacity |
18 litres |
|
Oil tank capacity |
2.6 litres |
