Smooth
- TAME UNEVEN TERRAIN: Sealed suspension bushing.
- Legendary Sportsman suspension delivers the smoothest ride to absorb bumps of all sizes.
Strong
- 44 HORSEPOWER: Even more power so you can work harder and let it rip on the trail.
- 1,350 LB. TOWING: Get more done with confidence thanks to a work-ready towing capacity.
- UPGRADED CLUTCH SEALING: Take on more trails with confidence with improved clutch airflow to help keep water out.
- Relentless, job-ready features for the daily grind.
Suspension
- ON-DEMAND AWD: Polaris On-Demand All-Wheel Drive delivers instant power when the slightest wheel spin is detected.
- BEST CLEARANCE: Equipped with 11.5″ of ground clearance to help you travel smoothly over rough terrain.
- PLUSH TRAVEL: Enjoy a smooth ride on the trail with 9.5″ of rear travel.
- Independent rear suspension delivers more traction and helps you ride over even bigger obstacles.
Versatile
- ACCESSORY READY: Add more accessories in less time with a pre-wired, plug-and-play harness for a winch, plow or hand warmers.
- FRONT STORAGE: Stash your tools and supplies with a best-in-class 5 gallons of integrated sealed storage–all secure and easy to reach.
- Best-in-class integrated storage and smart features for long days out. Plus, you can customize for your work or play needs with a wide selection of accessories.

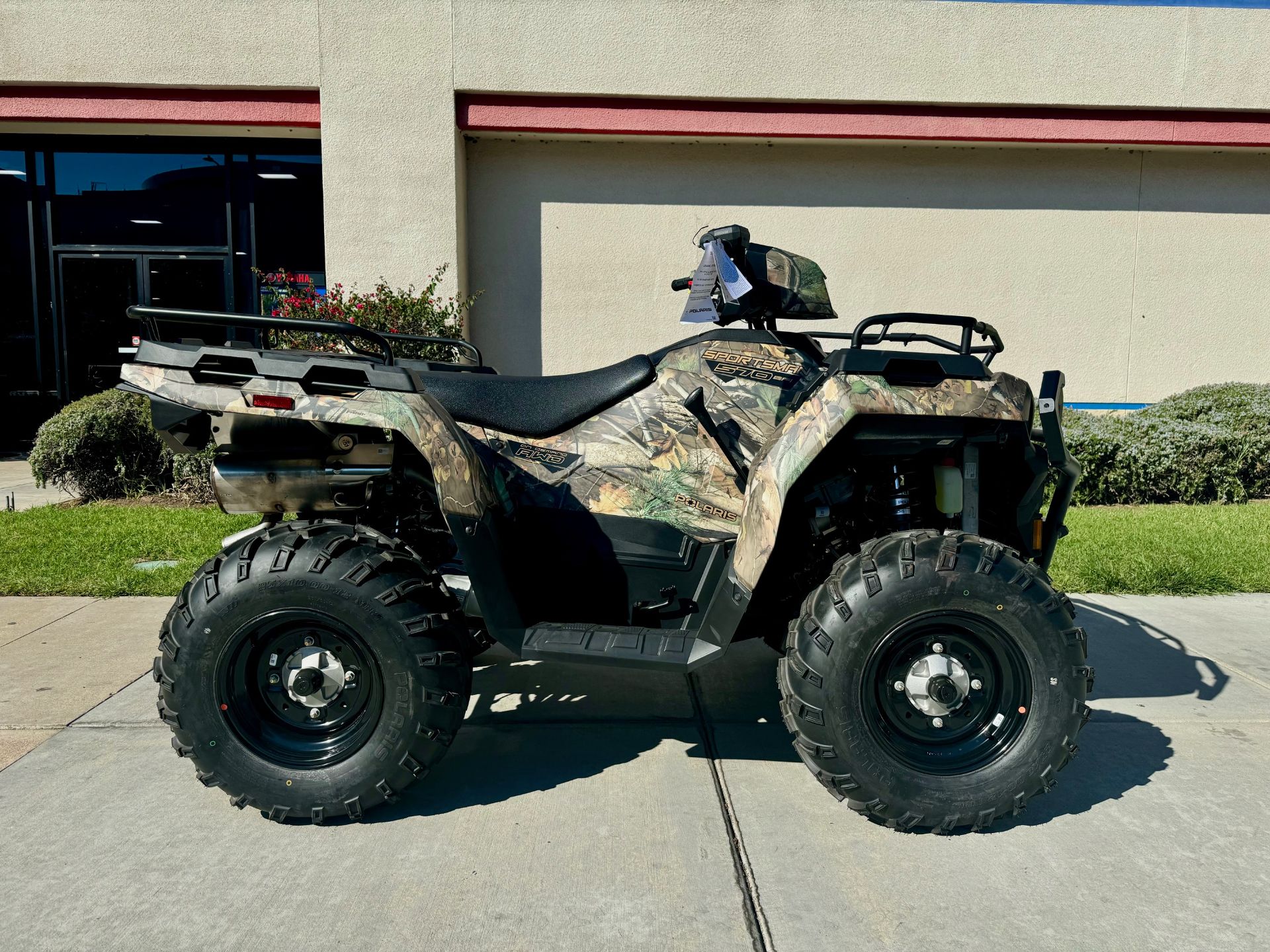

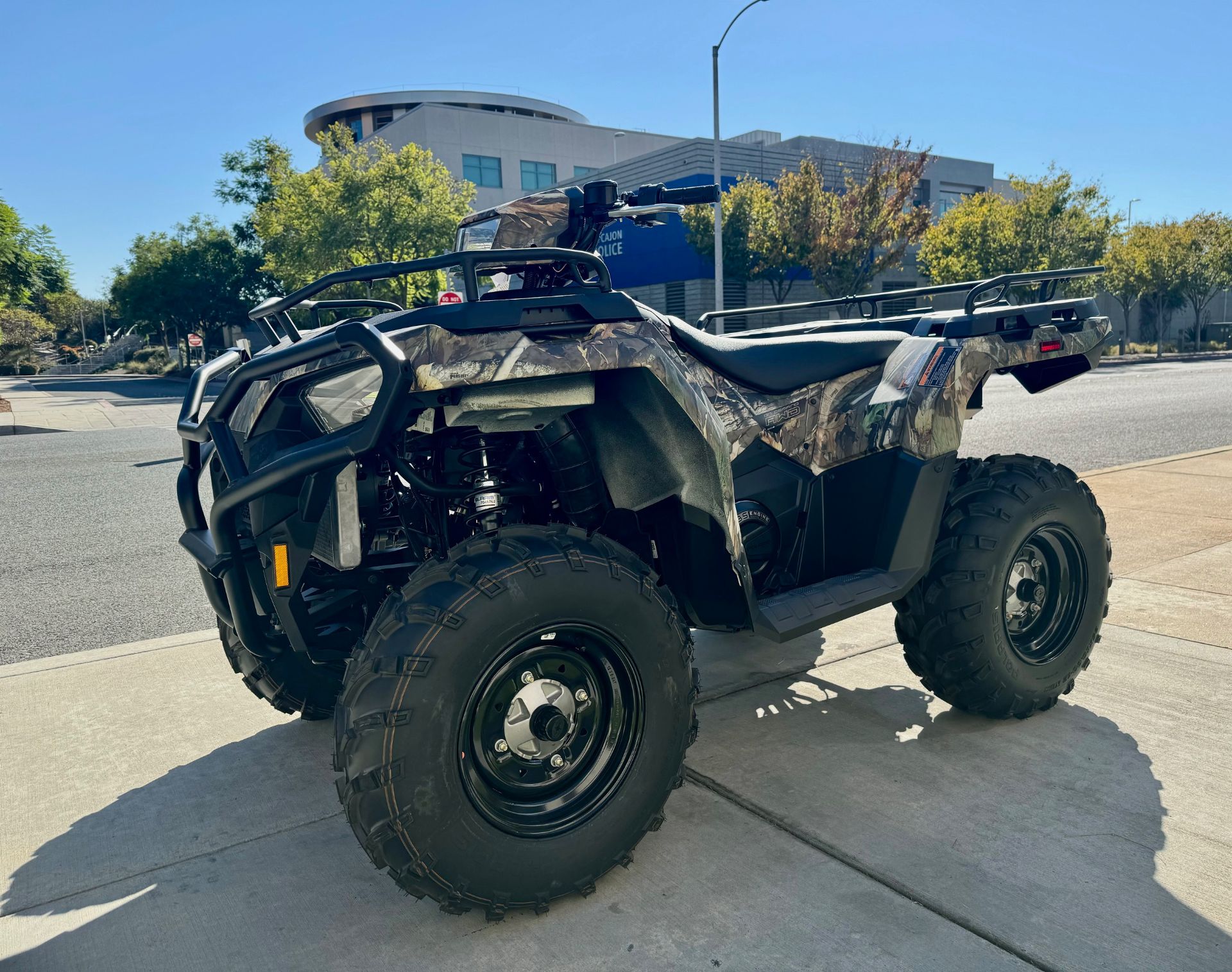

General Information
Manufacturer
Polaris
Model Year
2025
Model

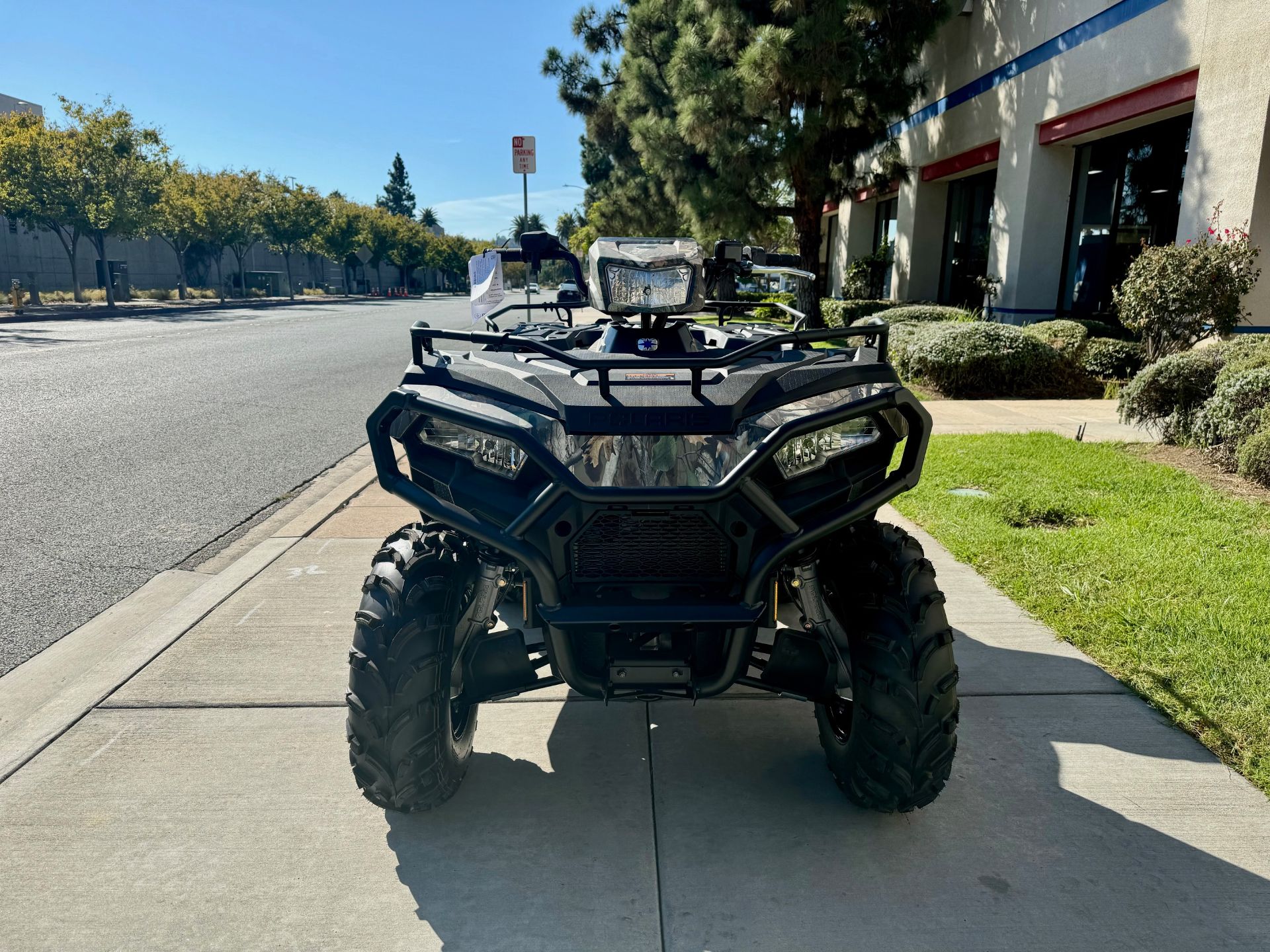

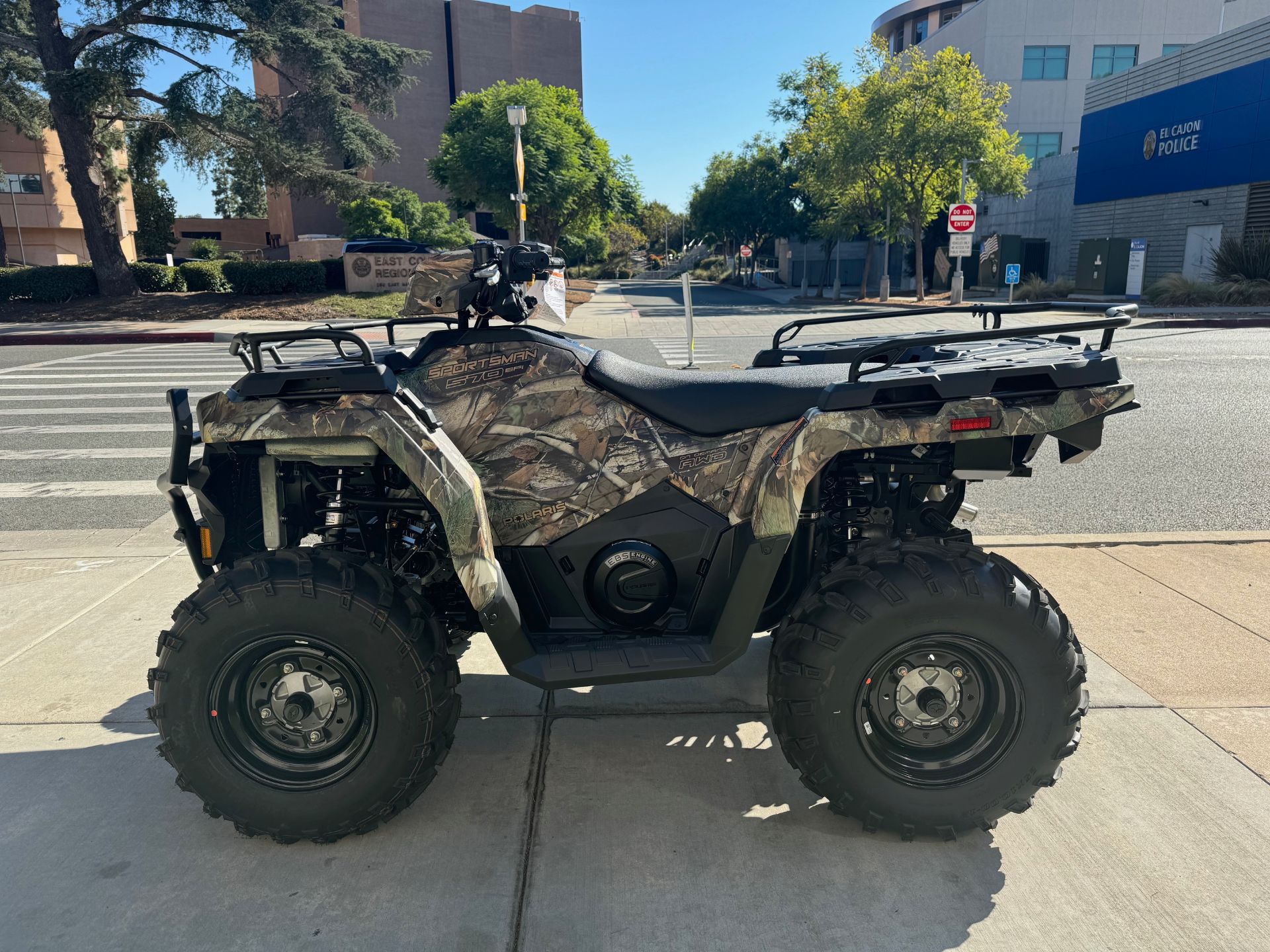

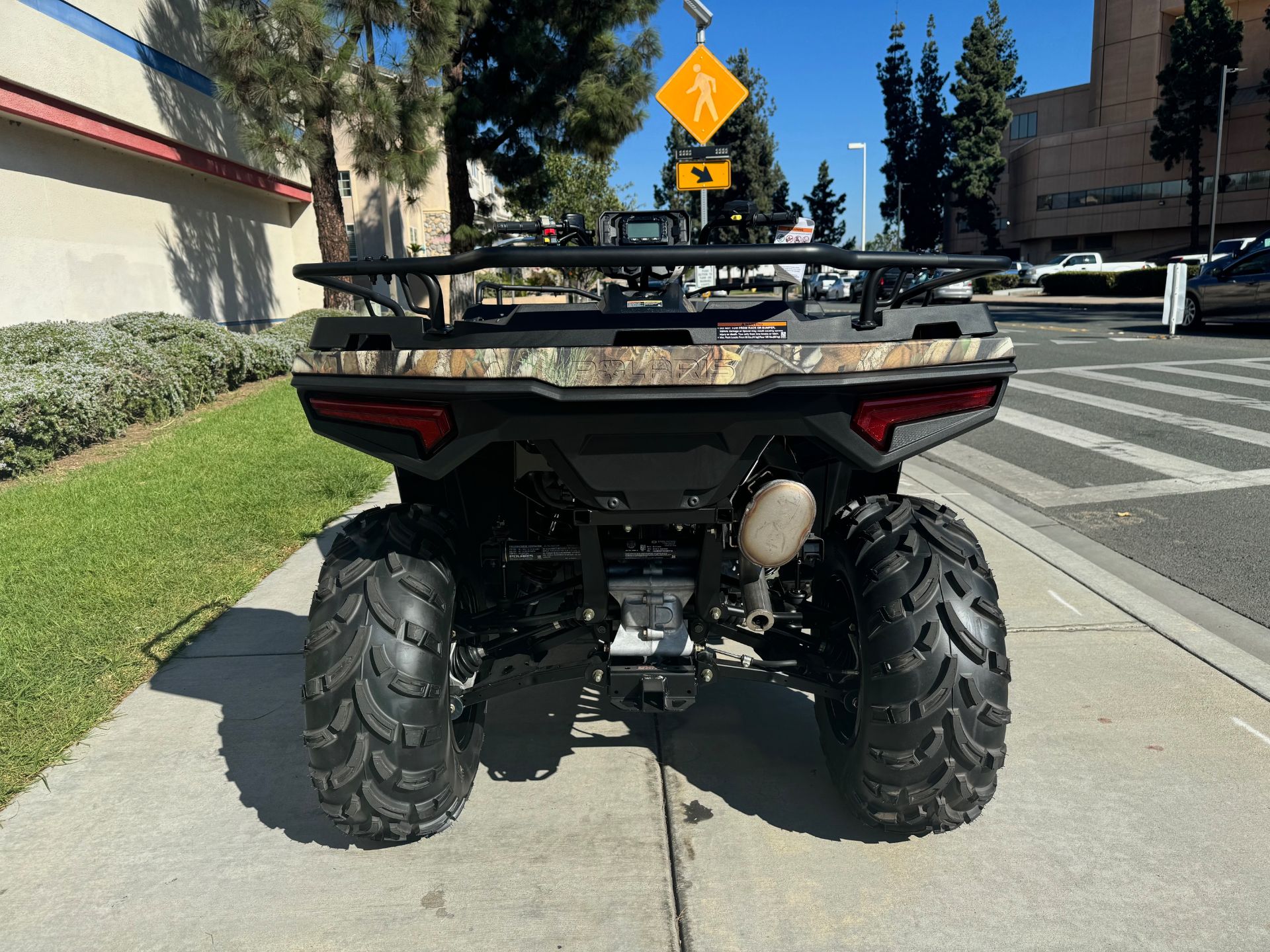

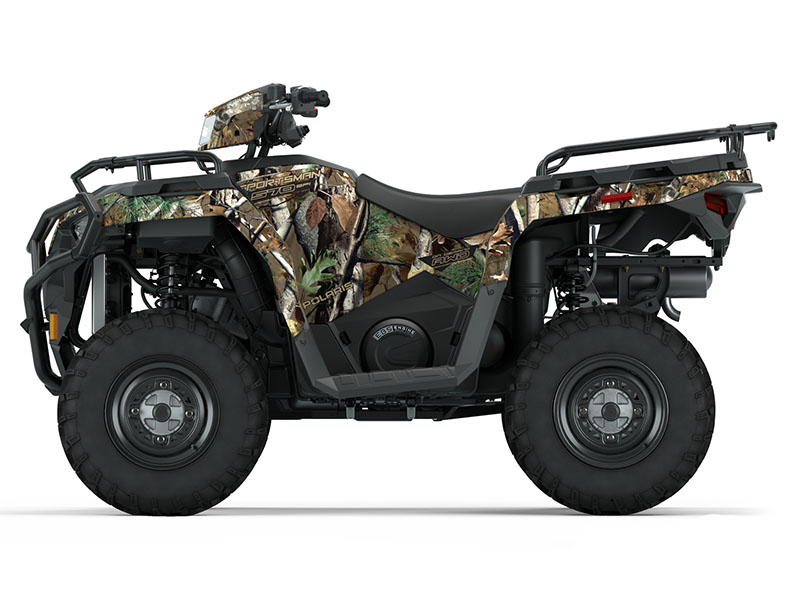

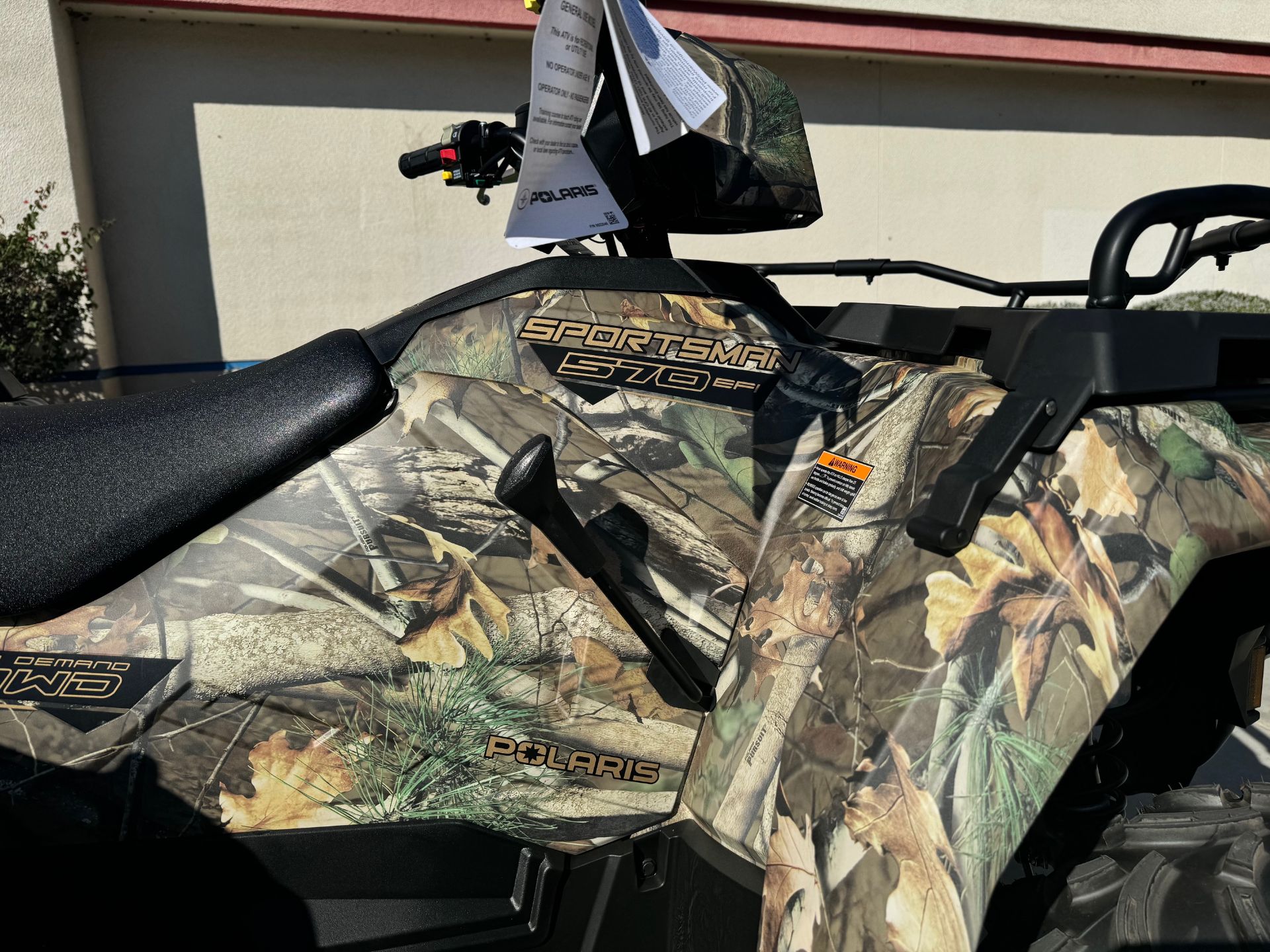

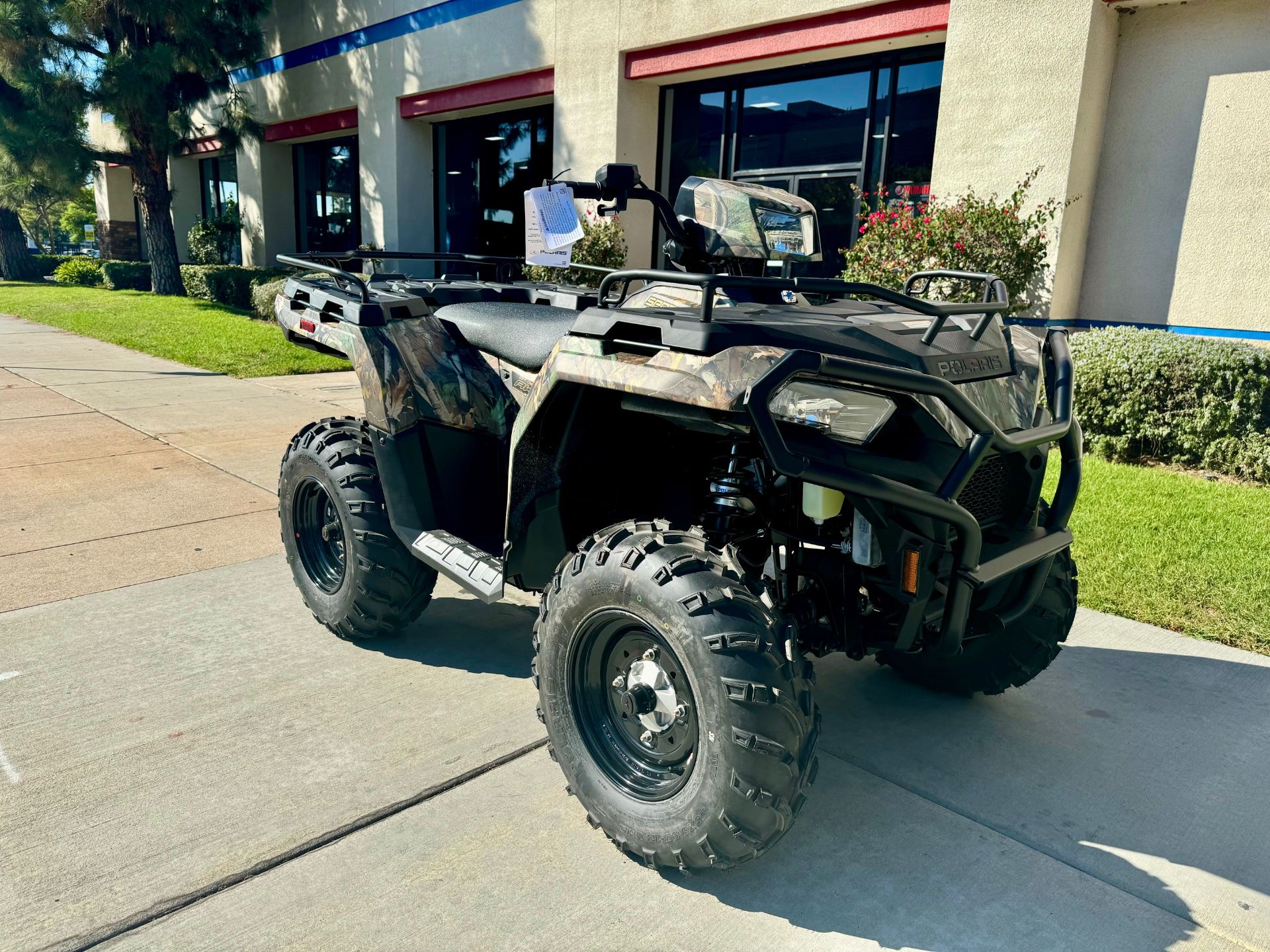

Sportsman 570 EPS
Model Code
A25SEE57B9
Stock Number
N/A
Color
Polaris Pursuit Camo
Brakes/Wheels/Tires
Brakes
Front / Rear – Single Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot
Parking – Park In-Transmission / Lockable Hand Lever
Engine Braking System (EBS)

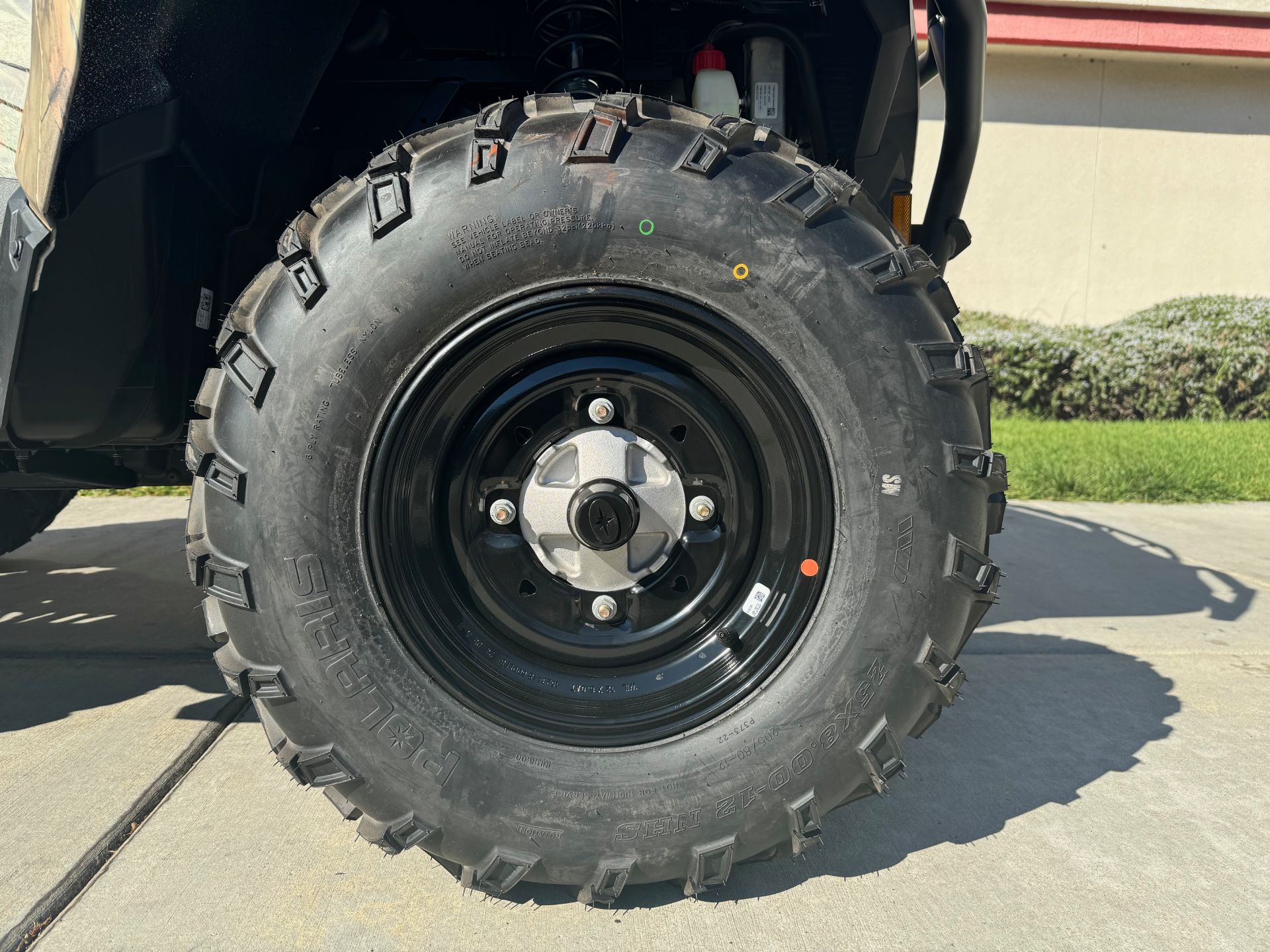

Wheels
12 in. (30.5 cm) Steel
Tires
Front – 25 x 8-12 P373; 6 PLY

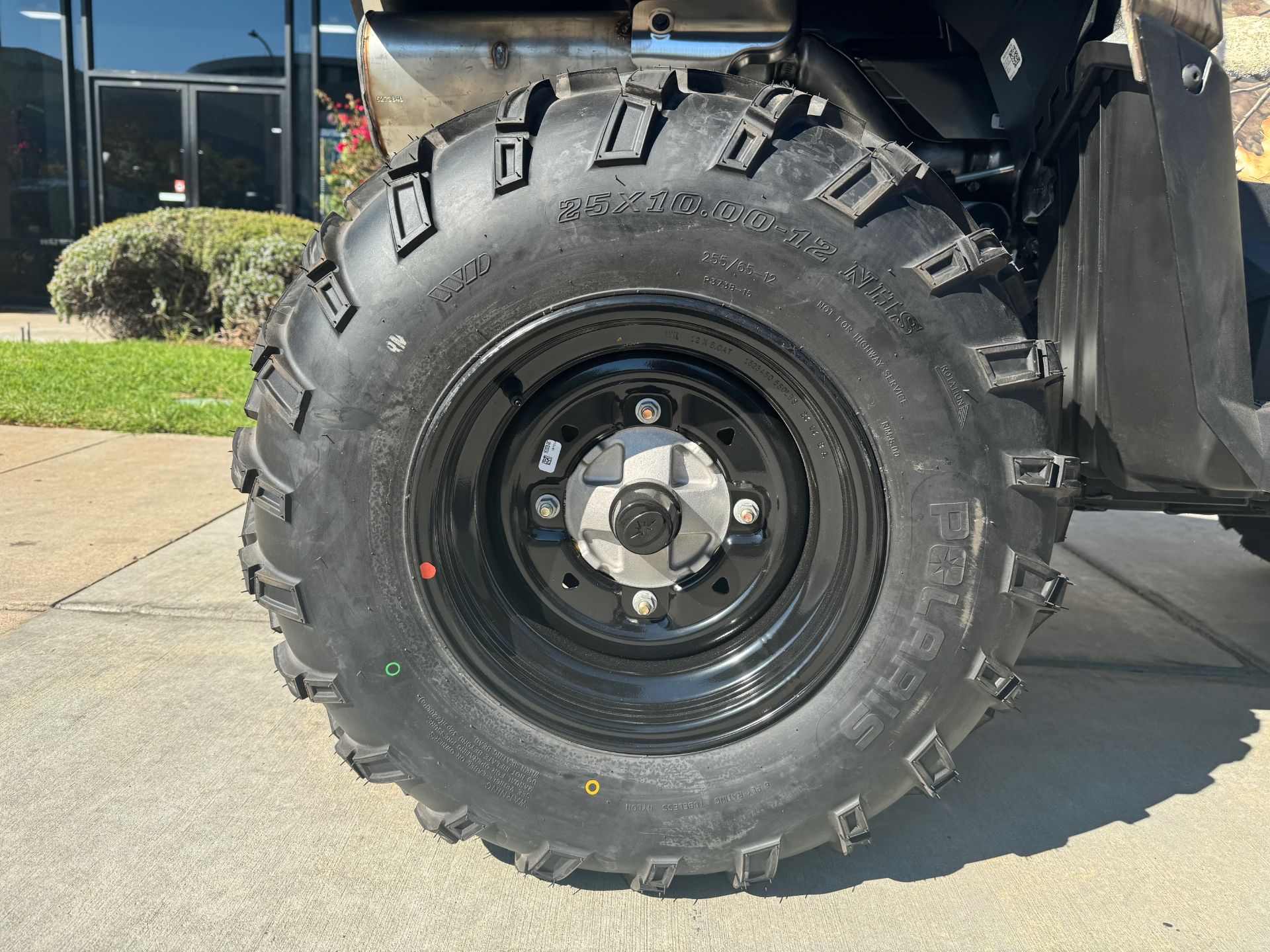

Rear – 25 x 10-12 P373; 6 PLY
Dimensions
Length
Overall – 86 in. (218.4 cm)
Height
Overall – 48 in. (121.9 cm)
Width
Overall – 48 in. (121.9 cm)
Weight
Estimated Dry – 760 lb. (345 kg)
Ground Clearance
11.5 in. (29 cm)
Wheelbase
50.5 in. (128.3 cm)
Seat Height
33.25 in. (84.5 cm)
Drivetrain
Transmission
Automatic PVT P / R / N / L / H In-line Shifting
Drive System
4×4
Drive
One Touch On-Demand AWD / 2WD
Electrical
Battery
340 CCA

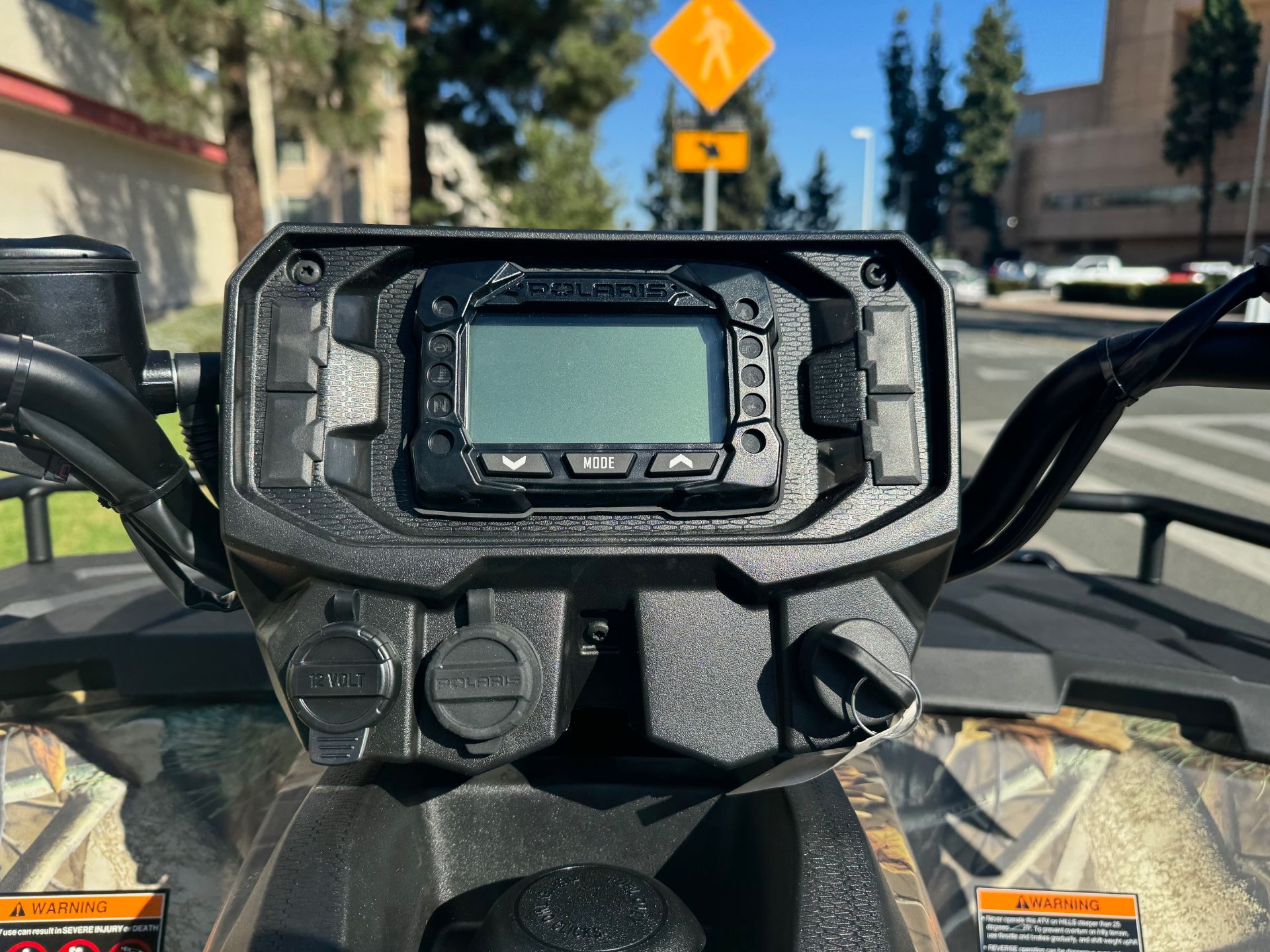

Instrumentation
All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light
Lighting
Halogen Pod and Bumper Lights, Triple 50W High Beams, Dual 50W Low Beams, Dual LED Brake Light / Taillight
Engine
Engine
ProStar 4-Stroke DOHC
Cooling
Liquid
Cylinders
Single
Horsepower
44 hp
Displacement
567 cc
Fuel System
Electronic Fuel Injection
Fuel Capacity
4.5 gal. (17.0 l)
Operational
Suspension
Front – Sealed MacPherson Strut With 8.2 in. (20.8 cm) Travel
Rear – Sealed Dual A-Arm, IRS 9.5 in. (24.1 cm) Travel
Steering
Electronic Power – Multi Select EPS
Seating
1 Person Capacity
Hitch
Standard 1.25 in. (3.2 cm) Receiver
Towing Capacity
Hitch – 1,350 lb. (612 kg)
Load Capacity
Front Rack – 90 lb. (40.8 kg)
Rear Rack – 180 lb. (81.6 kg)
Cargo System – Lock & Ride Compatible 5 gal. (18.9 l) Front Dry Storage
Capacity
Payload – 485 lb. (220 kg)
Other
Additional Colors

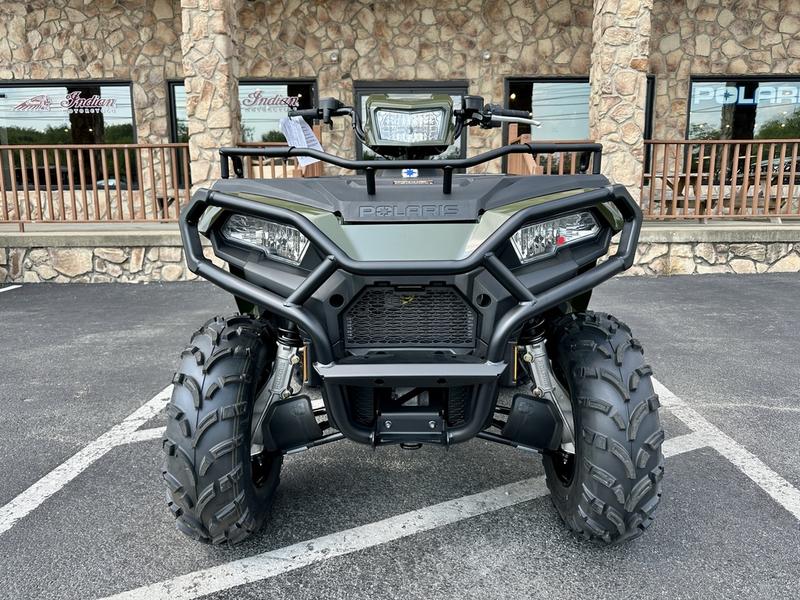

Sage Green
Desert Sand
Orange Rust
Polaris Pursuit Camo
Includes
Front Trail Bumper, Front Rack Extender, Rear Rack Extender, 12 Volt Power Plug, Pre-Wired for Hand & Thumb Warmers, In Pod Battery Charger, Winch Mount Included, Front A-Arm Guards
